pandas.api.typing.SeriesGroupBy.hist

SeriesGroupBy.hist(by=None, ax=None, grid=True, xlabelsize=None, xrot=None, ylabelsize=None, yrot=None, figsize=None, bins=10, backend=None, legend=False, **kwargs)

Draw histogram for each group’s values using Series.hist() API.

Parameters:

byobject, optional

Grouping key.

axmatplotlib.axes.Axes, optional

Axis to draw the histogram on.

gridbool, default True

Show axis grid lines.

xlabelsizeint, default None

X axis label size.

xrotfloat, default None

Rotation for x ticks.

ylabelsizeint, default None

Y axis label size.

yrotfloat, default None

Rotation for y ticks.

figsizetuple, optional

Figure size in inches.

binsint or sequence, default 10

Number of histogram bins or bin edges.

backendstr or callable or None, optional

Plotting backend to use (e.g. ‘matplotlib’). If None, use the default plotting backend.

legendbool, default False

Whether to draw the legend.

**kwargs

Additional keyword arguments passed to Series.hist().

Returns:

matplotlib.axes.Axes or ndarray of Axes

The returned matplotlib axes or array of axes depending on input.

See also

Series.hist

Equivalent histogram plotting method on Series.

Examples

>>> df = pd.DataFrame({"val": [1, 2, 2, 3, 3, 3]}, index=[0, 0, 1, 1, 2, 2])
>>> g = df["val"].groupby([0, 0, 1, 1, 2, 2])

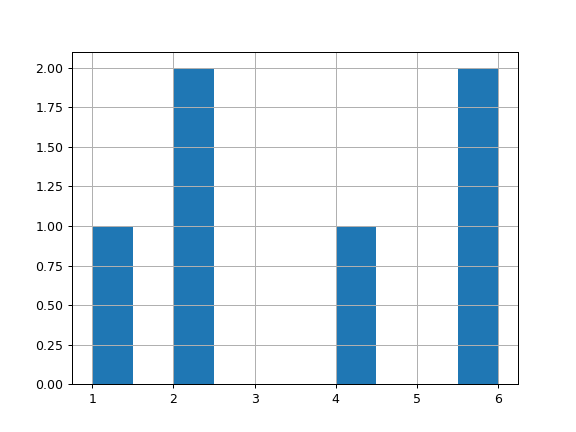

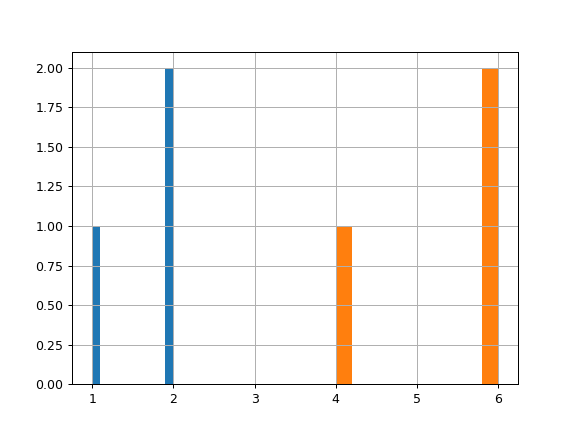

>>> g.hist()
